Level Instruments

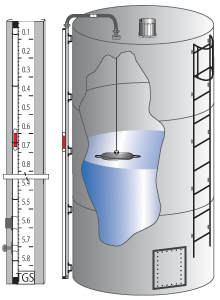

TGS Side Mounted Sealed Service Mechanical
Level Gauge TGS-5012

  • Prevents freezing, sticking and jamming of indicator-coupler or any moving parts
  • Magnetic gauge board for “tank-in-service” installations (No welding required)
  • No external gears or pulleys to jam or freeze
  • Field adjustable, CSA Class 1, Div. 1, Proximity switches can be added for high/low level alarms (optional)switches for high/low level alarms (optional)
  • Large easy to read gauge board with reflective, long-life 3M decal
  • Corrosion resistant materials
  • Corrosion resistant materials
  • 4-20mA output (optional)
  • Fiberglass float with Stainless Steel Swivel can be used with or without float guide wires

Technical Brochure / Manual


5012 (2)
